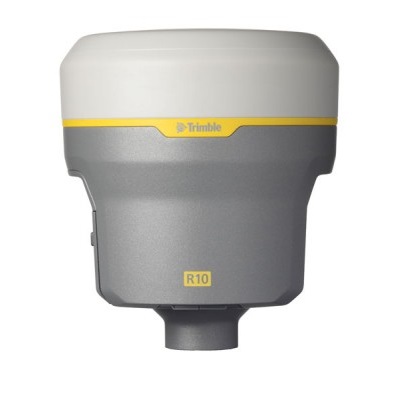

Trimble R10 Model 2 Integrated GNSS System

TrimbleR10 app TSC3 S6 mine survey 345_0.jpg
TrimbleR10 app TSC3 S6 mine survey 345_0.jpg

Trimble R10 Model 2 Integrated GNSS System


A new model of the revolutionary Trimble® R10 GNSS system is now available. Designed to help you work more effectively and productively, no matter how extreme the environment. The new, lighter design is more balanced, allowing you to travel farther, faster, and gather data more easily.

Call Haefeli Lysnar today to find out if this is the right GNSS system for you.

Product Data Sheet
GNSS Systems Portfolio Brochure

Integrated Receiver Comparison Table

Add To Cart

The Trimble R10 Model 2 enhancements include:

  • The latest and most advanced custom Trimble survey GNSS ASIC with an industry-leading 672 GNSS channels for unrivaled GNSS constellation tracking, including GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS as well as the full range of SBAS. The Trimble R10 tracks and processes all of today's available GNSS signals and is designed to support planned GNSS signals and systems that may be launched in the future.

  • Improved reliability against sources of interference and spoofed signals.

  • Improved power management to increase battery life and operating time in the field on average by 33 percent.

  • Increased internal memory (6 GB) to store more than 10 years of raw observations.

  • Support for Android and iOS platforms to allow organizations with Bring Your Own Device (BYOD) environments to benefit from a premium survey GNSS receiver by using the mobile devices their field crews already have in their pockets.

The new features build on the Trimble R10’s core technologies:

  • Trimble HD-GNSS processing engine that enables points to be quickly measured with confidence

  • Trimble SurePoint™ technology for precise positioning capture and full tilt compensation

  • Trimble xFill® technology for centimeter-level positioning during outages

  • Support for Trimble CenterPoint® RTX corrections for RTK level precision worldwide

This powerful system ensures you can collect better, more accurate data faster and easier no matter how challenging the job. Backed by Trimble’s legacy of surveying expertise and Haefeli Lysnar’s support and service, the new system enables surveyors to go places and do things they’ve never done before.

The Trimble R10 GNSS now holds the latest evolution of Trimble SurePoint technology, including automatic compensation for up to 15 degrees of pole tilt. Now the surveyor can measure in more places, reduce occupation time and record faster and safer measurements than ever before, with 100 per cent data traceability.

Key Benefits

  • Reach formerly inaccessible points: get the tip of the survey pole into tight corners and other points that are inaccessible with a vertical survey pole

  • Faster workflow: Less time per point is required to collect data, because the pole doesn’t have to be exactly 90 degrees and the 100 per cent measurement accuracy report ensures confidence

  • Safer for the surveyor: pay attention to nearby traffic or heavy machinery rather than having to concentrate on holding the pole plumb

  • 100% traceable data: readings from both the tilt and compass sensors are stored with every point and flow through to the office for complete visibility and confidence in the measurement results

The Trimble R10 also includes support for the Trimble CenterPoint RTX service, for RTK-level precision anywhere without the need for base station or VRS network. Enjoy the Trimble R10 GNSS system, including the key technologies of Trimble xFill, Trimble HD-GNSS, Trimble 360 and Trimble SurePoint, together with the Trimble Access field software and the Trimble Business Centre office software for the most advanced GNSS surveying system on the market.

All the new features for the Trimble R10 are supported with a free Firmware upgrade available in Q4 2013.

FULL TILT COMPENSATION – Rapid, Accurate Measurement even in tough environments

Surveyors are often sent out to collect data in environments where getting the point means getting in a tough spot. Climbing down into culverts, dodging heavy equipment, accessing points on a slope . . . the surveyor who can access and collect a point without having to concentrate on maintaining a consistent 90 degree angle is a surveyor who can work faster and more safely.

The R10 now allows for complete accuracy with a pole tilt off by as much as 15° so the surveyor can quickly collect and move on from point to point while having the freedom to pay closer attention to the surroundings, including traffic.

RTK Level Precision Anywhere

Trimble CenterPoint RTX delivers RTK level precision anywhere in the world without the use of a local base station or Trimble VRSTM Network. Survey using satellite-delivered CenterPoint RTX corrections in areas where terrestrial based corrections are not available. When surveying over a great distance in a remote area, such as a pipeline or utility right of way, CenterPoint RTX eliminates the need to continuously move base station or maintain connections to phone coverage.

Compatible Products

Download the Trimble R10 GNSS System Frequently Asked Questions here


Beyond GNSS SurePoint

Advanced Satellite Tracking with Trimble 360 Technology

Trimble R10, Trimble SurePoint. Trimble xFill, Trimble TSC3, Trimble CenterPoint RTX, Trimble Access and Trimble Business Centre are trademarks of Trimble Navigation Limited.
